Object Store

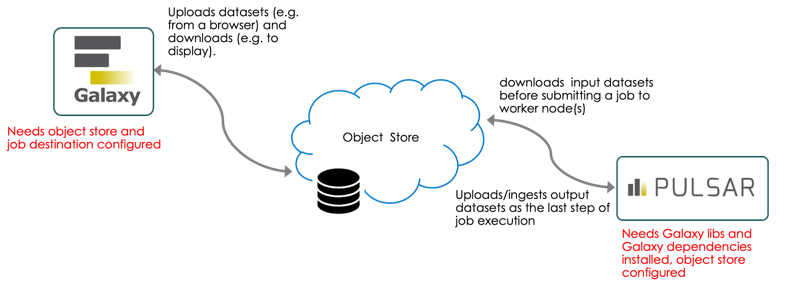

Steps to configure Galaxy/Pulsar to use object store

General configuration​

This link describes how to make Galaxy use object store as backend storage instead of local disk. One needs to set a flag in galaxy.yml and provide an object_store_conf.xml file.

More difficult (due to lack of documentation) is how to make jobs that are sent to Pulsar use object store for input/output data

This is our object_store_conf.xml file (templated). We added new parameters there:

     <oidc_provider> - the name of the OIDc provider to use for OIDC tokens verification
     <rucio write_rse_name, write_rse_scheme> - for Rucio plugin - Rucio RSE and scheme to use for file upload
     <rucio_download_scheme rse scheme> - for Rucio plugin, RSE/scheme mapping for file download

Configuring Galaxy Destinations and Pulsar​

Galaxy Destinations​

Pulsar destination in Galaxy config should be configured for object store. See job_conf.xml for full configuration, we'll take a look at some important pieces below

File actions​

file_actions parameter in Job Destination configuration for Pulsar should be set to "file_actions": {"paths":[{"action":"remote_object_store_copy","path_types":"input"}]} so that Pulsar uses remote_object_store_copy for input files instead of default one (remote_transfer). If this is not set, Pulsar uses HTTP transfer to get input files from the object store cache on the Galaxy server.

One can set file_actions dynamically in destinations.py file, or in job_conf.xml (using file_action_config parameter)

Remote output mode​

We added a destination parameter <param id="remote_output_mode">pulsar</param> to push output datasets by Pulsar after a job has finished (by default datasets are pushed to the object store as a part of a job).

Metadata strategy​

We need to set metadata_strategy to extended (can be set globally in galaxy.yml, but probably better do it for a specific destination),remote_metadata to true, set a path to Galaxy environment on a worker node and set remote_property_galaxy_home. This is how we do that dynamically in destinations.py:

note

documentation only says about setting metadata_strategy="extended", nothing about remote_metadata. But we had to set it to true, otherwise, Pulsar still sends data back to Galaxy via HTTP and the job fails anyway due to some missing files.

Pulsar configuration​

One has to configure an object store in Pulsar's app.yml file. Since this is a YAML file, the format is different as compared to XML, but the same fields should be set. A constructor for the object store class is then called from Pulsar to create an object store instance. We have our config in Ansible playbook.

It looks something like this:

conda_auto_init: false
conda_auto_install: false
galaxy_home: /opt/galaxy/server
ignore_umask: true
job_directory_mode: '0777'
job_metrics_config_file: job_metrics_conf.xml
managers:
    cloud-cpu1-test:
        num_concurrent_jobs: 5
        type: queued_python
    register-test:
        num_concurrent_jobs: 5
        object_store_config:
            rucio_register_only: true
            rucio_write_rse_name: SNSHFIR_TEST
        set_meta_as_user:
            authentication_method: oidc_azure
            command_prefix: oidc-run-as-user /etc/security/oidc/oidc.json $token -c
        type: queued_python
message_queue_url: amqp://xxx:xxx
object_store_config:
    cache:
        path: /data/object_store_cache_test
        size: 5
    extra_dirs:
    -   path: /data/object_store_workdir_test
        type: job_work
    rucio_download_schemes:
    -   ignore_checksum: true
        rse: SNSHFIR
        scheme: file
    -   ignore_checksum: true
        rse: SNSHFIR_TEST
        scheme: file
    rucio_scope: galaxy_test
    rucio_write_rse_name: CEPH_TEST
    rucio_write_rse_scheme: file
    store_by: uuid
    type: rucio
persistence_directory: /data/persisted_data_test
staging_directory: /data/staging_test
tool_dependency_dir: /opt/pulsar_test/deps
user_auth:
    authentication:
        oidc_azure:
            oidc_jwks_url: XXX
            oidc_provider: XXX
            oidc_username_in_token: preferred_username
            oidc_username_template: *.
            type: oidc
    authorization:
        all:
            type: allow_all

Having that configured, Pulsar should pull input files from the object store before the job starts and push file to the object store after the job has finished.
